SIRIO SQ 75W/300-1000 1-10V (145075) - Alimentatori LED

torna a Alimentatori LED

145075 - SIRIO SQ 75W/300-1000 1-10V

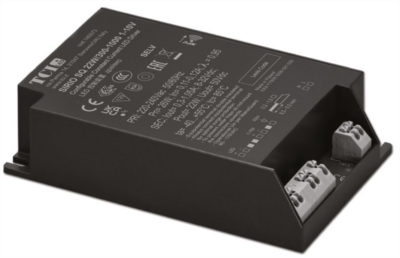

SIRIO SQ 75W/300-1000 1-10V - 145075 - TCI

Caratteristiche

Tensione nominale
220...240 V
Corrente costante
Corrente
300 mA
220-240 V = Potenza in uscita
32,4 W
Corrente
350 mA
220-240 V = Potenza in uscita
37,8 W
Corrente
400 mA
220-240 V = Potenza in uscita
43,2 W
Corrente
450 mA
220-240 V = Potenza in uscita
48,6 W
Corrente
500 mA
220-240 V = Potenza in uscita
54 W
Corrente
550 mA
220-240 V = Potenza in uscita
59,4 W
Corrente
600 mA
220-240 V = Potenza in uscita
64,8 W
Corrente
650 mA
220-240 V = Potenza in uscita
70 W
Corrente
700 mA
220-240 V = Potenza in uscita
75 W
Corrente
750 mA
220-240 V = Potenza in uscita
75 W
Corrente
800 mA
220-240 V = Potenza in uscita
75 W
Corrente
850 mA
220-240 V = Potenza in uscita
75 W
Corrente
900 mA
220-240 V = Potenza in uscita
75 W
Corrente
950 mA
220-240 V = Potenza in uscita
75 W
Corrente
1000 mA
220-240 V = Potenza in uscita
75 W
Corrente
1050 mA
220-240 V = Potenza in uscita
75 W
Regolazione:
1-10V only
MIDNIGHT Function
CLO Function
Altre caratteristiche tecniche:
RIPPLE FREE
ACTIVE PFC (pf>0.9)
NOT SELV (>120V)
DIMMING: AMPLITUDE (AM) IEEE1789-2015 - Dim-to-Warm
4/5 kV DM/CM SURGE Input Protection
4/8 kV DM/CM SURGE Input Protection
6/6 kV DM/CM SURGE Input Protection
6/8 kV DM/CM SURGE Input Protection
6/10 kV DM/CM SURGE Input Protection
Omologazioni:
ENEC
CCC
RCM
CE
UKCA
Involucro plastico:
Square
for Built-in
Misure:
133 x 39 x 75 mm
ultimo aggiornamento:
15/03/2023
