SIRIO SL 75W/200-700 4PN (145065) - LED Drivers

back to LED Drivers

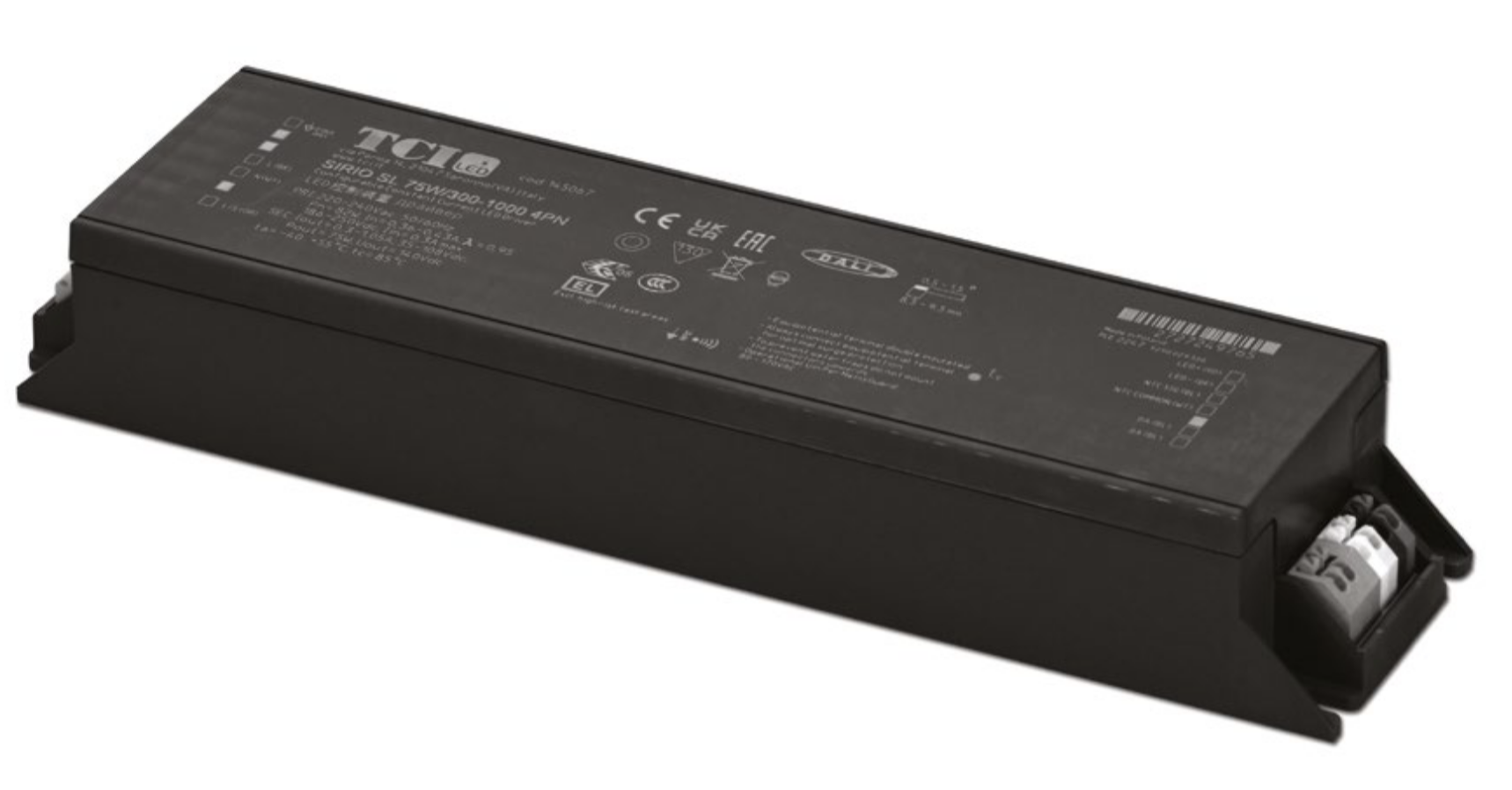

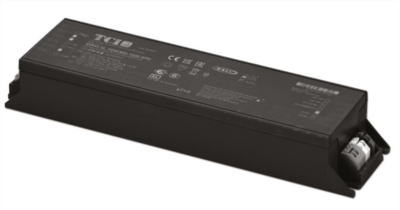

145065 - SIRIO SL 75W/200-700 4PN

SIRIO SL 75W/200-700 4PN - 145065 - TCI

Features

Rated Voltage
220...240 V
Constant Current
Current
200 mA
220-240 V = Output power
30 W
Current
250 mA
220-240 V = Output power
37.5 W
Current
300 mA
220-240 V = Output power
45 W
Current
350 mA
220-240 V = Output power
52.5 W
Current
400 mA
220-240 V = Output power
60 W
Current
450 mA
220-240 V = Output power
67.5 W
Current
500 mA
220-240 V = Output power
75 W
Current
550 mA
220-240 V = Output power
75 W
Current
600 mA
220-240 V = Output power
75 W
Current
650 mA
220-240 V = Output power
75 W
Current
700 mA
220-240 V = Output power
75 W
Dimming:
DALI-2 (also DALI-1)
MIDNIGHT Function
BILEVEL Function
CLO Function
DC EMERGENCY Function
FULL PROGRAMMABLE
Additional technical features:
RIPPLE FREE
ACTIVE PFC (pf>0.9)
NOT SELV (>120V)
DIMMING: AMPLITUDE (AM) IEEE1789-2015 - Dim-to-Warm
4/5 kV DM/CM SURGE Input Protection
4/8 kV DM/CM SURGE Input Protection
6/6 kV DM/CM SURGE Input Protection
6/8 kV DM/CM SURGE Input Protection
6/10 kV DM/CM SURGE Input Protection
Approvals:
ENEC
CCC
RCM
CE
UKCA
Plastic case:
Slim
for Built-in
Size:
240 x 37 x 58 mm
last update:
3/15/2023
