145057 - SIRIO SQ 110W/200-700 4PN

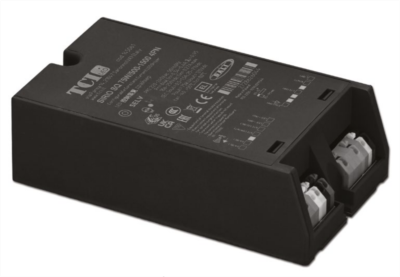

SIRIO SQ 110W/200-700 4PN - 145057 - TCI

Features

Rated Voltage
220...240 V
Constant Current
Current
200 mA
220-240 V = Output power
44 W
Current
250 mA
220-240 V = Output power
55 W
Current
300 mA
220-240 V = Output power
66 W
Current
350 mA
220-240 V = Output power
77 W
Current
400 mA
220-240 V = Output power
88 W
Current
450 mA
220-240 V = Output power
99 W
Current
500 mA
220-240 V = Output power
110 W
Current
550 mA
220-240 V = Output power
110 W
Current
600 mA
220-240 V = Output power
110 W
Current
650 mA
220-240 V = Output power
110 W
Current
700 mA
220-240 V = Output power
110 W
Dimming:
DALI-2 (also DALI-1)
MIDNIGHT Function
BILEVEL Function
CLO Function
DC EMERGENCY Function
FULL PROGRAMMABLE
Additional technical features:
RIPPLE FREE
ACTIVE PFC (pf>0.9)
NOT SELV (>120V)
DIMMING: AMPLITUDE (AM) IEEE1789-2015 - Dim-to-Warm
4/5 kV DM/CM SURGE Input Protection
4/8 kV DM/CM SURGE Input Protection
6/6 kV DM/CM SURGE Input Protection
6/8 kV DM/CM SURGE Input Protection
6/10 kV DM/CM SURGE Input Protection
Approvals:
ENEC
CCC
RCM
CE
UKCA
Plastic case:
Square
for Built-in
Size:
133 x 39 x 75 mm
last update:
5/21/2024
Product info
Country of production:
Poland
EAN:
8010703885141
HS code:
85044083
