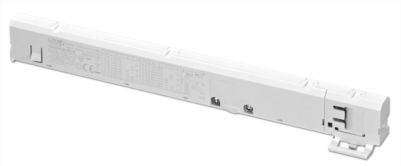

142300W - iTRACK 40 300-1050 HE

iTRACK 40 300-1050 HE - 142300W - TCIiTRACK 40 300-1050 HE - 142300W - TCI

Features

Rated Voltage
220...240 V
Dimming:
NOT DIMMABLE
Additional technical features:
RIPPLE FREE
ACTIVE PFC (pf>0.9)
SELV <>
Approvals:
ENEC
RCM
Plastic case:
TRACK ADAPTOR MAINS VOLTAGE
Size:
230 x 26 x 14 mm
last update:
6/9/2026
Constant Current
Current
300 mA
220-240 V = Output power
12.6 W
Current
350 mA
220-240 V = Output power
14.7 W
Current
400 mA
220-240 V = Output power
16.8 W
Current
450 mA
220-240 V = Output power
18.9 W
Current
500 mA
220-240 V = Output power
21 W
Current
550 mA
220-240 V = Output power
23.1 W
Current
600 mA
220-240 V = Output power
25.2 W
Current
650 mA
220-240 V = Output power
27.3 W
Current
700 mA
220-240 V = Output power
29.4 W
Current
750 mA
220-240 V = Output power
31.5 W
Current
800 mA
220-240 V = Output power
33.6 W
Current
850 mA
220-240 V = Output power
34 W
Current
900 mA
220-240 V = Output power
36 W
Current
950 mA
220-240 V = Output power
38 W
Current
1000 mA
220-240 V = Output power
40 W
Current
1050 mA
220-240 V = Output power
40 W
Output voltage (min/max)
300 mA
5...42
350 mA
5...42
400 mA
5...42
450 mA
5...42
500 mA
5...42
550 mA
5...42
600 mA
5...42
650 mA
5...42
700 mA
5...42
750 mA
5...42
800 mA
5...42
850 mA
5...40
900 mA
5...40
950 mA
5...40
1000 mA
5...40
1050 mA
5...38
Product info
Country of production:
China
EAN:
8010703493476
HS code:
85369001
