152026 - IPR2 NFC

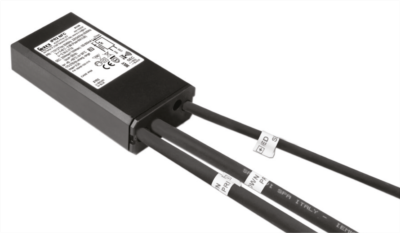

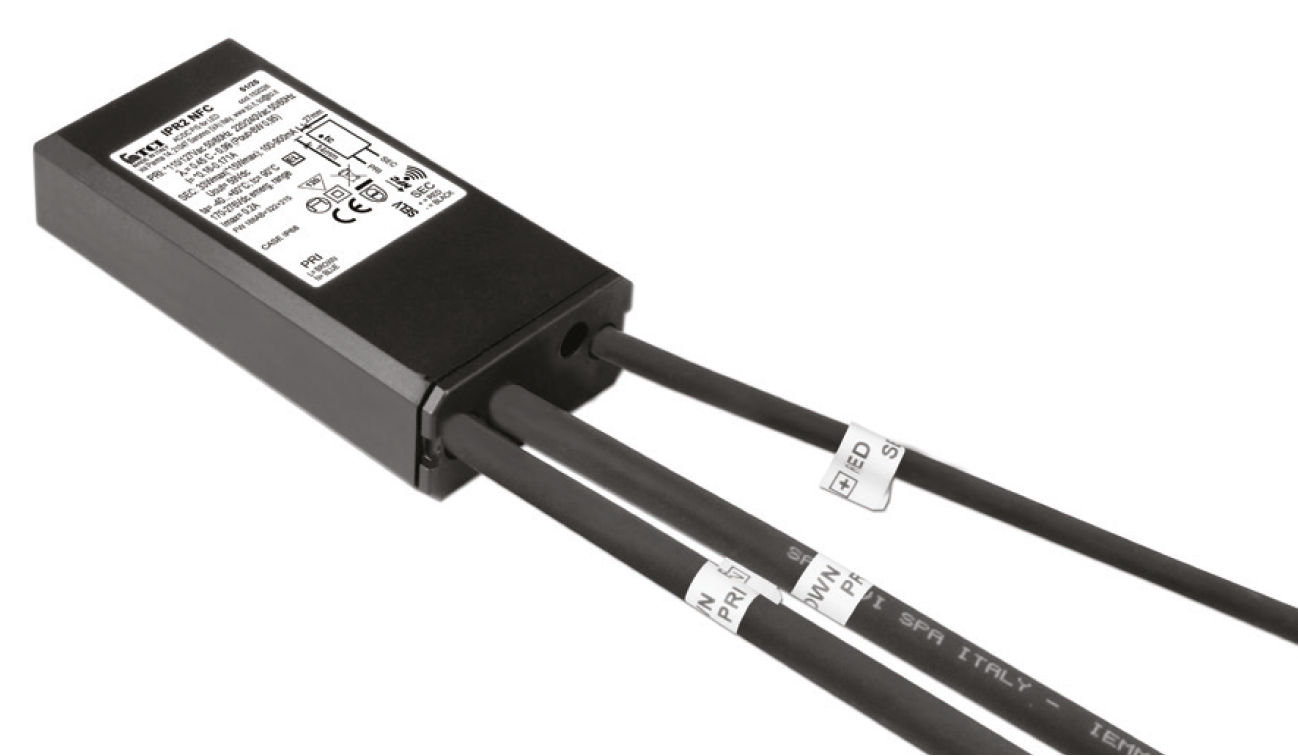

IPR2 NFC - 152026 - TCIIPR2 NFC - 152026 - TCI

Features

Rated Voltage
110...127 V
220...240 V
Dimming:
NOT DIMMABLE
Adjustable DC EMERGENCY
Additional technical features:
RIPPLE FREE
ACTIVE PFC (pf>0.9)
SELV <>
WIDE RANGE INPUT VOLTAGE
4/5 kV DM/CM SURGE Input Protection
Plastic case:
Square
IP 68
Size:
121 x 26 x 53 mm
last update:
2/27/2026
Constant Current
Current
NFC programming
Current
100 mA
220-240 V = Output power
5.4 W
110-127 V =
15 W
Current
150 mA
220-240 V = Output power
8.1 W
110-127 V =
15 W
Current
200 mA
220-240 V = Output power
10.8 W
110-127 V =
15 W
Current
250 mA
220-240 V = Output power
13.5 W
110-127 V =
15 W
Current
300 mA
220-240 V = Output power
16.2 W
110-127 V =
15 W
Current
350 mA
220-240 V = Output power
18.9 W
110-127 V =
15 W
Current
400 mA
220-240 V = Output power
21.6 W
110-127 V =
15 W
Current
450 mA
220-240 V = Output power
24.3 W
110-127 V =
15 W
Current
500 mA
220-240 V = Output power
27 W
110-127 V =
15 W
Current
550 mA
220-240 V = Output power
29.7 W
110-127 V =
15 W
Current
600 mA
220-240 V = Output power
32.4 W
110-127 V =
15 W
Current
650 mA
220-240 V = Output power
33 W
110-127 V =
15 W
Current
700 mA
220-240 V = Output power
33 W
110-127 V =
15 W
Current
750 mA
220-240 V = Output power
33 W
110-127 V =
15 W
Current
800 mA
220-240 V = Output power
33 W
110-127 V =
15 W
Current
850 mA
220-240 V = Output power
33 W
110-127 V =
15 W
Current
900 mA
220-240 V = Output power
33 W
110-127 V =
15 W
Product info
Country of production:
Italy
EAN:
8010703468740
HS code:
85044083
