Features
Rated Voltage
Dimming:
DALI-2 (also DALI-1)
D4i (Active DALI)
MIDNIGHT Function
ALO (Adjustable Light Output)
CLO (Constant Lumen Output)
DC EMERGENCY Function
Additional technical features:
RIPPLE FREE
ACTIVE PFC (pf>0.9)
NOT SELV (>120V)
DIMMING: AMPLITUDE (AM) IEEE1789-2015 - Dim-to-Warm
6/10 kV DM/CM SURGE Input Protection
Plastic case:

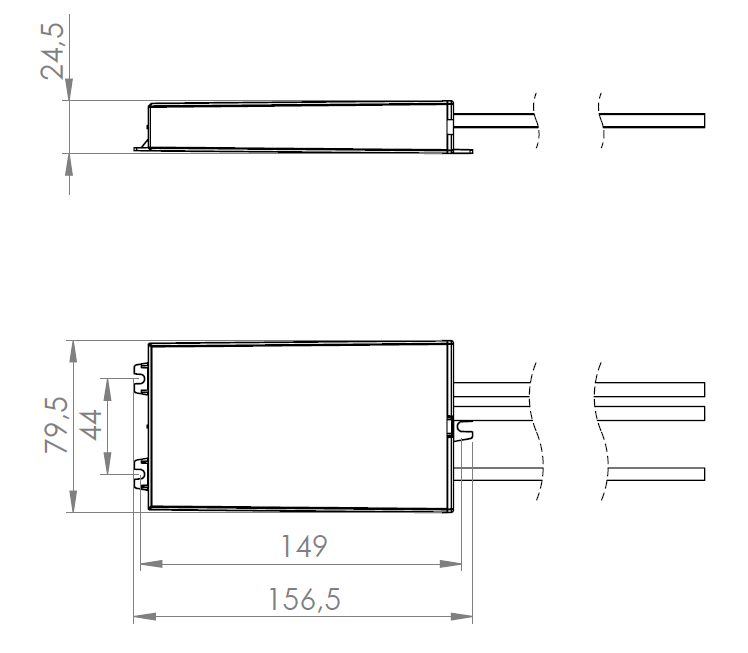

Size:
149 x 26 x 80 mm
last update:
2/27/2026
Current
200 mA
220-240 V = Output power
30 W
Current
250 mA
220-240 V = Output power
37.25 W
Current
300 mA
220-240 V = Output power
45 W
Current
350 mA
220-240 V = Output power
52.5 W
Current
400 mA
220-240 V = Output power
60 W
Current
450 mA
220-240 V = Output power
67.5 W
Current
500 mA
220-240 V = Output power
75 W
Current
550 mA
220-240 V = Output power
82.5 W
Current
600 mA
220-240 V = Output power
90 W
Current
650 mA
220-240 V = Output power
90 W
Current
700 mA
220-240 V = Output power
90 W
Current
750 mA
220-240 V = Output power
90 W
Current
800 mA
220-240 V = Output power
90 W
Current
850 mA
220-240 V = Output power
90 W
Current
900 mA
220-240 V = Output power
90 W
Current
950 mA
220-240 V = Output power
90 W
Current
1000 mA
220-240 V = Output power
90 W
Current
1050 mA
220-240 V = Output power
90 W
Country of production:
Italy
EAN:
8010703481695
HS code:
85044083
