PROFESSIONALE MD 18 (145195) - LED Drivers

back to LED Drivers

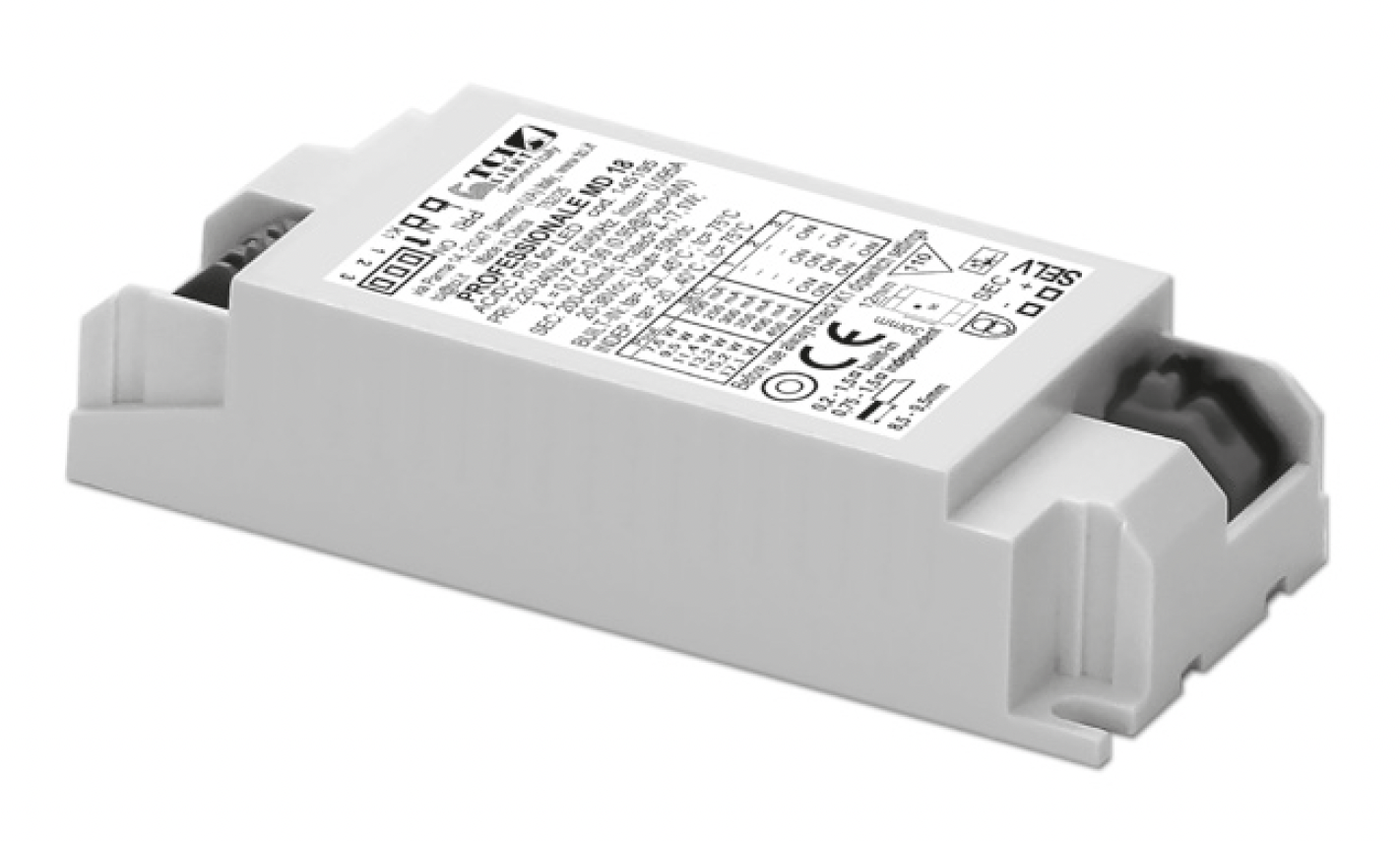

145195 - PROFESSIONALE MD 18

PROFESSIONALE MD 18 - 145195 - TCIPROFESSIONALE MD 18 - 145195 - TCIPROFESSIONALE MD 18 - 145195 - TCIPROFESSIONALE MD 18 - 145195 - TCI

Features

Rated Voltage
220...240 V
Dimming:
PHASE CUT / IGBT - TRIAC
Additional technical features:
RIPPLE FREE
ACTIVE PFC (pf>0.9)
SELV <>
DIMMING: AMPLITUDE (AM) IEEE1789-2015 - Dim-to-Warm
Approvals:
ENEC
RCM
Plastic case:
Square
for Built-in
Size:
97 x 22 x 43 mm
last update:
6/5/2026
Constant Current
Current
200 mA
220-240 V = Output power
7.6 W
Current
250 mA
220-240 V = Output power
9.5 W
Current
300 mA
220-240 V = Output power
11.4 W
Current
350 mA
220-240 V = Output power
13.3 W
Current
400 mA
220-240 V = Output power
15.2 W
Current
450 mA
220-240 V = Output power
17.1 W
Output voltage (min/max)
200 mA
20...38
250 mA
20...38
300 mA
20...38
350 mA
20...38
400 mA
20...38
450 mA
20...38
Product info
Country of production:
China

Documentation download

Approvals download
