Features
Rated Voltage
Dimming:
D4i (Active DALI)
ALO (Adjustable Light Output)
CLO (Constant Lumen Output)
Adjustable DC EMERGENCY
FULL PROGRAMMABLE
Additional technical features:
RIPPLE FREE
ACTIVE PFC (pf>0.9)
SELV <>
DIMMING: AMPLITUDE (AM) IEEE1789-2015 - Dim-to-Warm
LOOPING on PRIMARY SIDE
Plastic case:

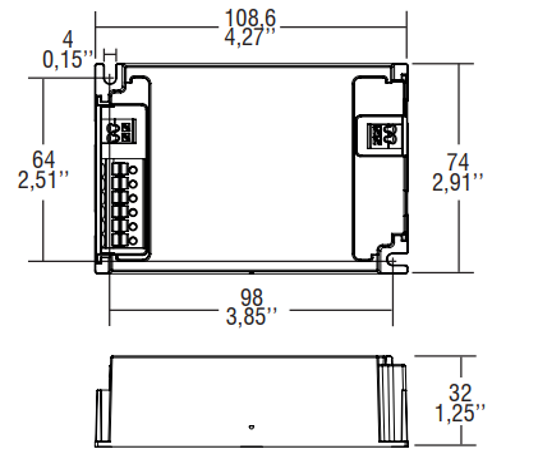

Size:
108 x 32 x 74 mm
last update:
2/25/2026
Current
NFC programming
Current
150 mA
220-240 V = Output power
8,1 W
Current
175 mA
220-240 V = Output power
9,45 W
Current
200 mA
220-240 V = Output power
10,8 W
Current
225 mA
220-240 V = Output power
12,15 W
Current
250 mA
220-240 V = Output power
13,5 W
Current
275 mA
220-240 V = Output power
14,85 W
Current
300 mA
220-240 V = Output power
16,2 W
Current
325 mA
220-240 V = Output power
17,55 W
Current
350 mA
220-240 V = Output power
18,9 W
Current
375 mA
220-240 V = Output power
20,25 W
Current
400 mA
220-240 V = Output power
21,6 W
Current
425 mA
220-240 V = Output power
22,95 W
Current
450 mA
220-240 V = Output power
24,3 W
Current
475 mA
220-240 V = Output power
25,65 W
Current
500 mA
220-240 V = Output power
27 W
Current
550 mA
220-240 V = Output power
29,7 W
Current
600 mA
220-240 V = Output power
32,4 W
Current
650 mA
220-240 V = Output power
35,1 W
Current
700 mA
220-240 V = Output power
37,8 W
Current
750 mA
220-240 V = Output power
38 W
Current
800 mA
220-240 V = Output power
38 W
Current
850 mA
220-240 V = Output power
38 W
Current
900 mA
220-240 V = Output power
38 W
Current
950 mA
220-240 V = Output power
38 W
Current
1000 mA
220-240 V = Output power
38 W
Current
1050 mA
220-240 V = Output power
38 W
Country of production:
Italy
EAN:
8010703475731
HS code:
85044083
Catalog page
Photo (801 kb)
3D design (4 Mb)
2D design (54 kb)
