MPE 80/350 SLIM G2 (127735) - LED Drivers

back to LED Drivers

127735 - MPE 80/350 SLIM G2

search engine powered by

Kubla

Features

Rated Voltage

220...240 V

Dimming:

NOT DIMMABLE

Additional technical features:

RIPPLE FREE

ACTIVE PFC (pf>0.9)

NOT SELV (>120V)

Plastic case:

Slim

for Built-in

Approvals:

ENEC

RCM

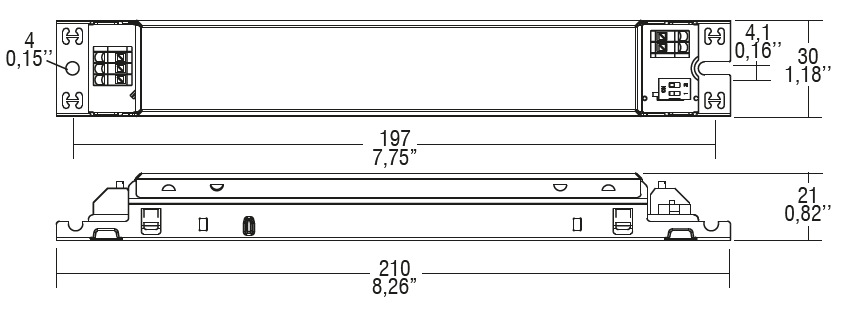

Size:

210 x 21 x 30 mm

last update:

2/25/2026

Constant Current

Current

200 mA

220-240 V = Output power

52 W

Current

250 mA

220-240 V = Output power

65 W

Current

300 mA

220-240 V = Output power

78 W

Current

350 mA

220-240 V = Output power

84 W

Output voltage (min/max)

200 mA

120...260

250 mA

120...260

300 mA

120...260

350 mA

120...240

Product info

Country of production:

China

EAN:

8010703476547

HS code:

85044083

Documentation download

Catalog page
Photo (110 kb)
3D design (571 kb)
2D design (15 kb)

Approvals download

ENEC (2 Mb)
CB CERTIFICATE (138 kb)
RCM (181 kb)
