IPR7 DALI NFC 4P (141272) - LED Drivers

back to LED Drivers

141272 - IPR7 DALI NFC 4P

IPR7 DALI NFC 4P - 141272 - TCIIPR7 DALI NFC 4P - 141272 - TCI

Features

Rated Voltage
220...240 V
Dimming:
DALI-2 (also DALI-1)
ALO (Adjustable Light Output)
CLO (Constant Lumen Output)
Additional technical features:
SELV <>
DIMMING: AMPLITUDE (AM) IEEE1789-2015 - Dim-to-Warm
Approvals:
ENEC
Plastic case:
IP 68

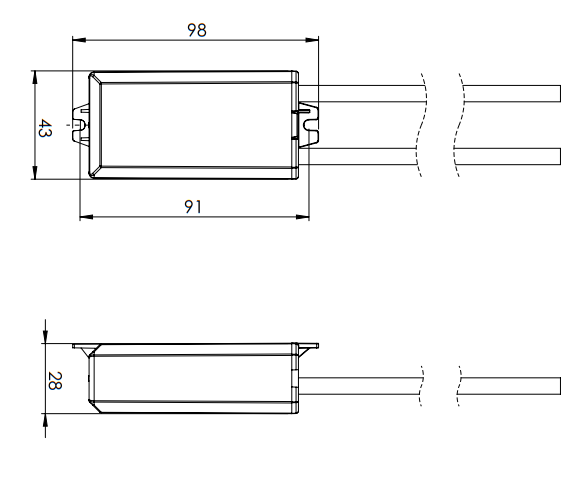

Size:
98 x 28 x 43 mm
last update:
2/27/2026
Constant Current
Current
NFC programming
Current
100 mA
220-240 V = Output power
4.6 W
Current
150 mA
220-240 V = Output power
6.9 W
Current
200 mA
220-240 V = Output power
9.2 W
Current
250 mA
220-240 V = Output power
11.5 W
Current
300 mA
220-240 V = Output power
12 W
Current
350 mA
220-240 V = Output power
12 W
Current
400 mA
220-240 V = Output power
12 W
Current
450 mA
220-240 V = Output power
12 W
Current
500 mA
220-240 V = Output power
12 W
Current
550 mA
220-240 V = Output power
12 W
Current
600 mA
220-240 V = Output power
12 W
Current
650 mA
220-240 V = Output power
12 W
Current
700 mA
220-240 V = Output power
12 W
Product info
Country of production:
Italy
EAN:
8010703480056
HS code:
85044083

Documentation download

Approvals download

Software
