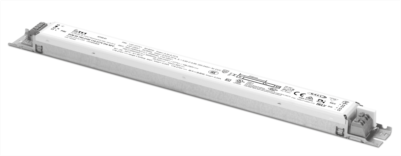

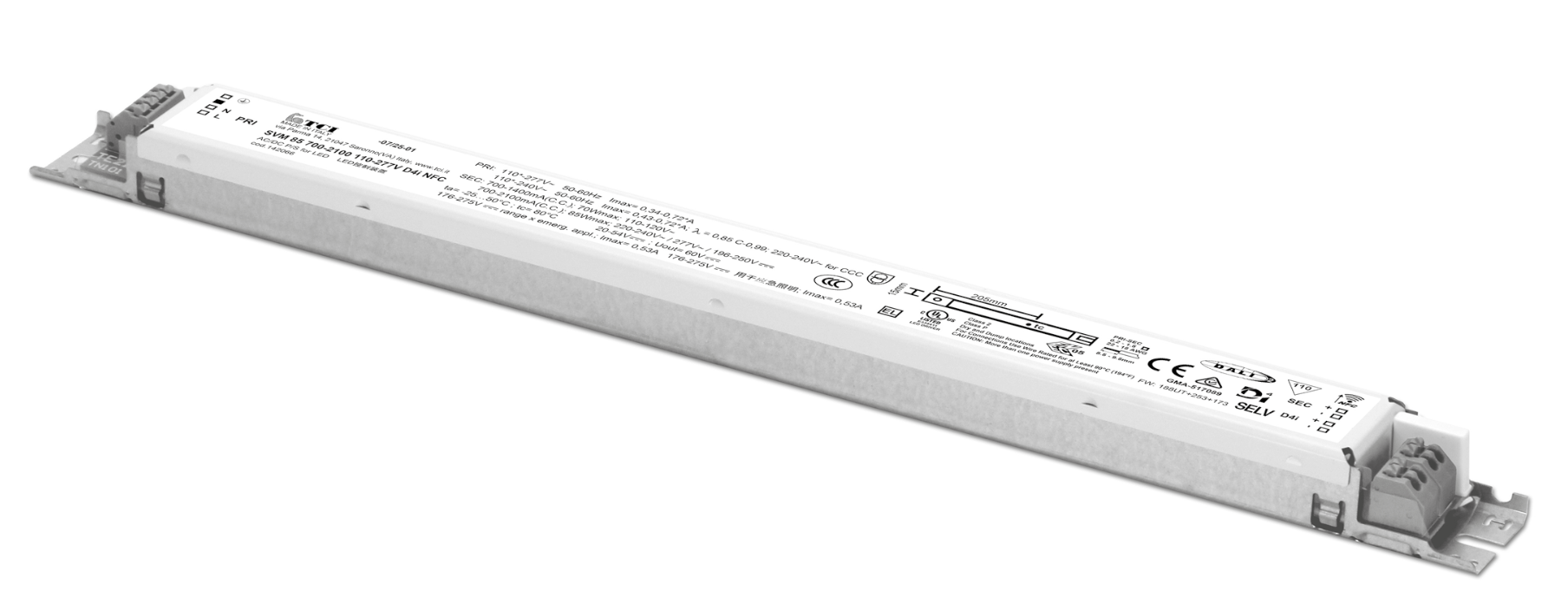

142066 - SVM 85 700-2100 110-277V D4i NFC

SVM 85 700-2100 110-277V D4i NFC - 142066 - TCISVM 85 700-2100 110-277V D4i NFC - 142066 - TCI

Features

Rated Voltage
110...127 V
220...240 V
277 V
Dimming:
DALI-2 (also DALI-1)
D4i (Active DALI)
ALO (Adjustable Light Output)
CLO (Constant Lumen Output)
Adjustable DC EMERGENCY
Additional technical features:
RIPPLE FREE
ACTIVE PFC (pf>0.9)
SELV <>
Approvals:
KC
UL LISTED (class P)
ENEC
CCC
RCM
CE
UKCA
Plastic case:
Slim
for Built-in
Size:
360 x 21 x 30 mm
last update:
10/31/2025
Constant Current
Current
NFC programming
Current
700 mA
220-240 V = Output power
37.8 W
110-127 V =
37.8 W
Current
800 mA
220-240 V = Output power
43.2 W
110-127 V =
43.2 W
Current
900 mA
220-240 V = Output power
48.6 W
110-127 V =
48.6 W
Current
950 mA
220-240 V = Output power
51.3 W
110-127 V =
51.3 W
Current
1000 mA
220-240 V = Output power
54 W
110-127 V =
54 W
Current
1100 mA
220-240 V = Output power
59.4 W
110-127 V =
59.4 W
Current
1200 mA
220-240 V = Output power
64.8 W
110-127 V =
64.8 W
Current
1300 mA
220-240 V = Output power
70.2 W
110-127 V =
70 W
Current
1400 mA
220-240 V = Output power
75.6 W
110-127 V =
70 W
Current
1550 mA
220-240 V = Output power
83.7 W
110-127 V =
70 W
Current
1700 mA
220-240 V = Output power
85 W
110-127 V =
70 W
Current
1800 mA
220-240 V = Output power
85 W
110-127 V =
70 W
Current
2100 mA
220-240 V = Output power
85 W
110-127 V =
70 W
Product info
Country of production:
Italy
EAN:
8010703887077
HS code:
85044083
