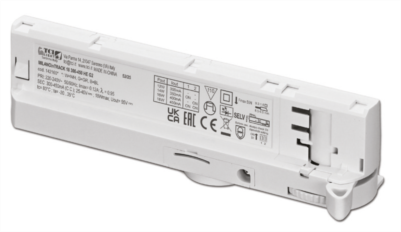

142162G - MILANOinTRACK 34 700-850 HE G2

MILANOinTRACK 34 700-850 HE G2 - 142162G - TCI

search engine powered by

Kubla

Features

Rated Voltage

220...240 V

Dimming:

NOT DIMMABLE

Additional technical features:

RIPPLE FREE

ACTIVE PFC (pf>0.9)

SELV <>

Plastic case:

TRACK ADAPTOR MAINS VOLTAGE

Size:

170 x 46 x 32 mm

last update:

2/27/2026

Constant Current

Current

700 mA

220-240 V = Output power

28 W

Current

750 mA

220-240 V = Output power

30 W

Current

800 mA

220-240 V = Output power

32 W

Current

850 mA

220-240 V = Output power

34 W

Output voltage (min/max)

700 mA

25...40

750 mA

25...40

800 mA

25...40

850 mA

25...40

Product info

Country of production:

China

EAN:

8010703476080

HS code:

85044083

Documentation download

Catalog page
Photo (757 kb)
3D design (1 Mb)
2D design (26 kb)
