142160W - MILANOinTRACK 18 300-450 HE G2

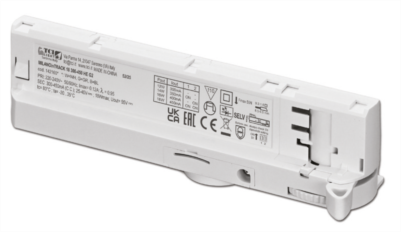

MILANOinTRACK 18 300-450 HE G2 - 142160W - TCIMILANOinTRACK 18 300-450 HE G2 - 142160W - TCI

Features

Rated Voltage
220...240 V
Dimming:
NOT DIMMABLE
Additional technical features:
RIPPLE FREE
ACTIVE PFC (pf>0.9)
SELV <>
Plastic case:
TRACK ADAPTOR MAINS VOLTAGE
Size:
158 x 42 x 31 mm
last update:
2/27/2026
Constant Current
Current
300 mA
220-240 V = Output power
12 W
Current
350 mA
220-240 V = Output power
14 W
Current
400 mA
220-240 V = Output power
16 W
Current
450 mA
220-240 V = Output power
18 W
Output voltage (min/max)
300 mA
25...40
350 mA
25...40
400 mA
25...40
450 mA
25...40
Product info
Country of production:
China
EAN:
8010703476004
HS code:
85044083

Documentation download
