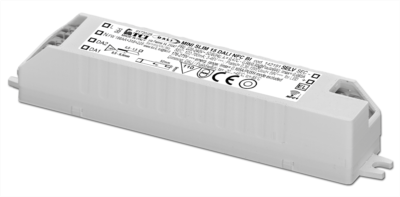

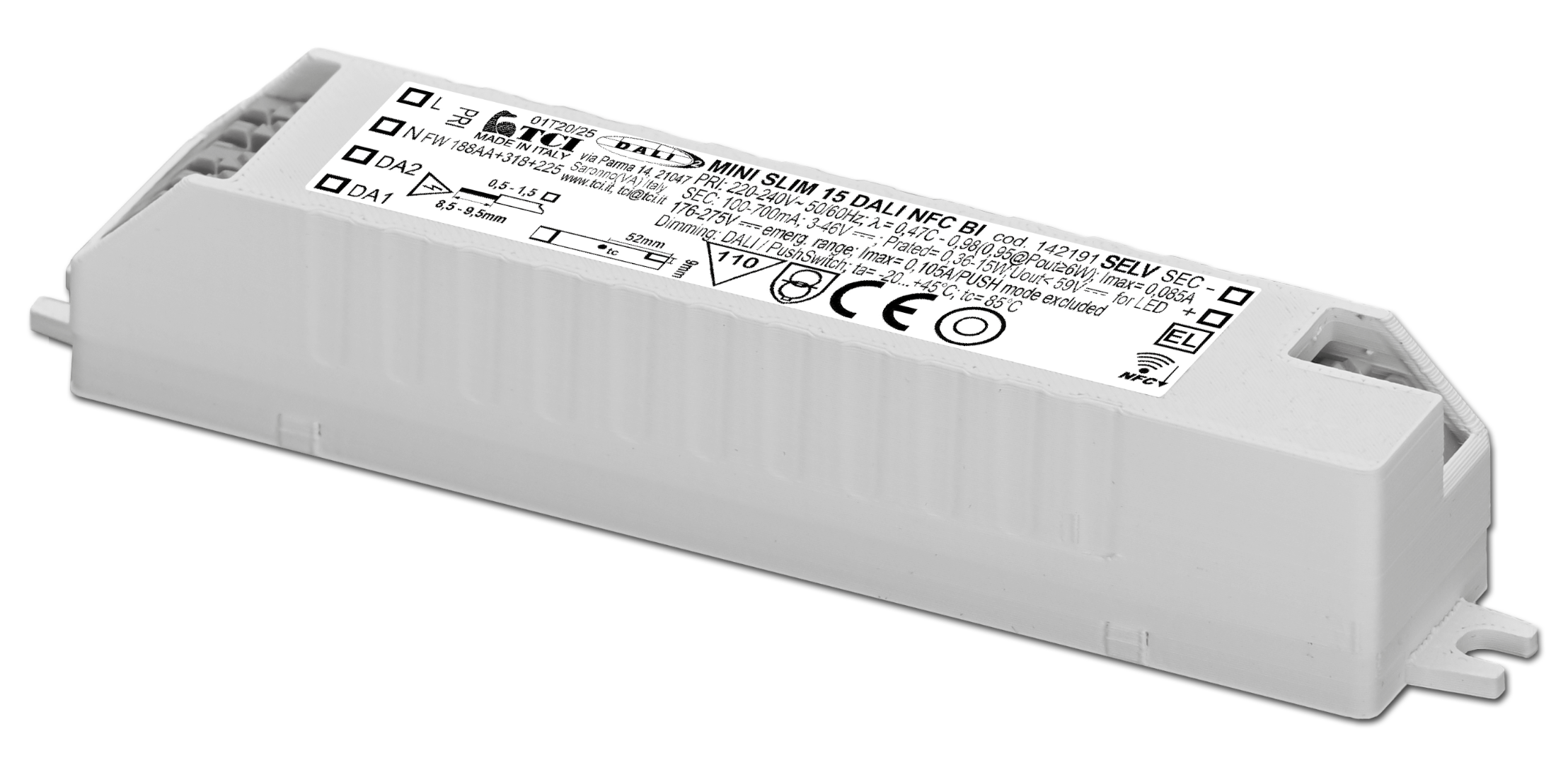

142191 - MINI SLIM 15 DALI NFC BI

MINI SLIM 15 DALI NFC BI - 142191 - TCIMINI SLIM 15 DALI NFC BI - 142191 - TCI

Features

Rated Voltage
220...240 V
Dimming:
DALI-2 (also DALI-1)
PUSH (on the Mains)
ALO (Adjustable Light Output)
Additional technical features:
RIPPLE FREE
ACTIVE PFC (pf>0.9)
SELV <>
DIMMING: AMPLITUDE (AM) IEEE1789-2015 - Dim-to-Warm
Approvals:
ENEC
CCC
RCM
CE
UKCA
Plastic case:
Slim
for Built-in

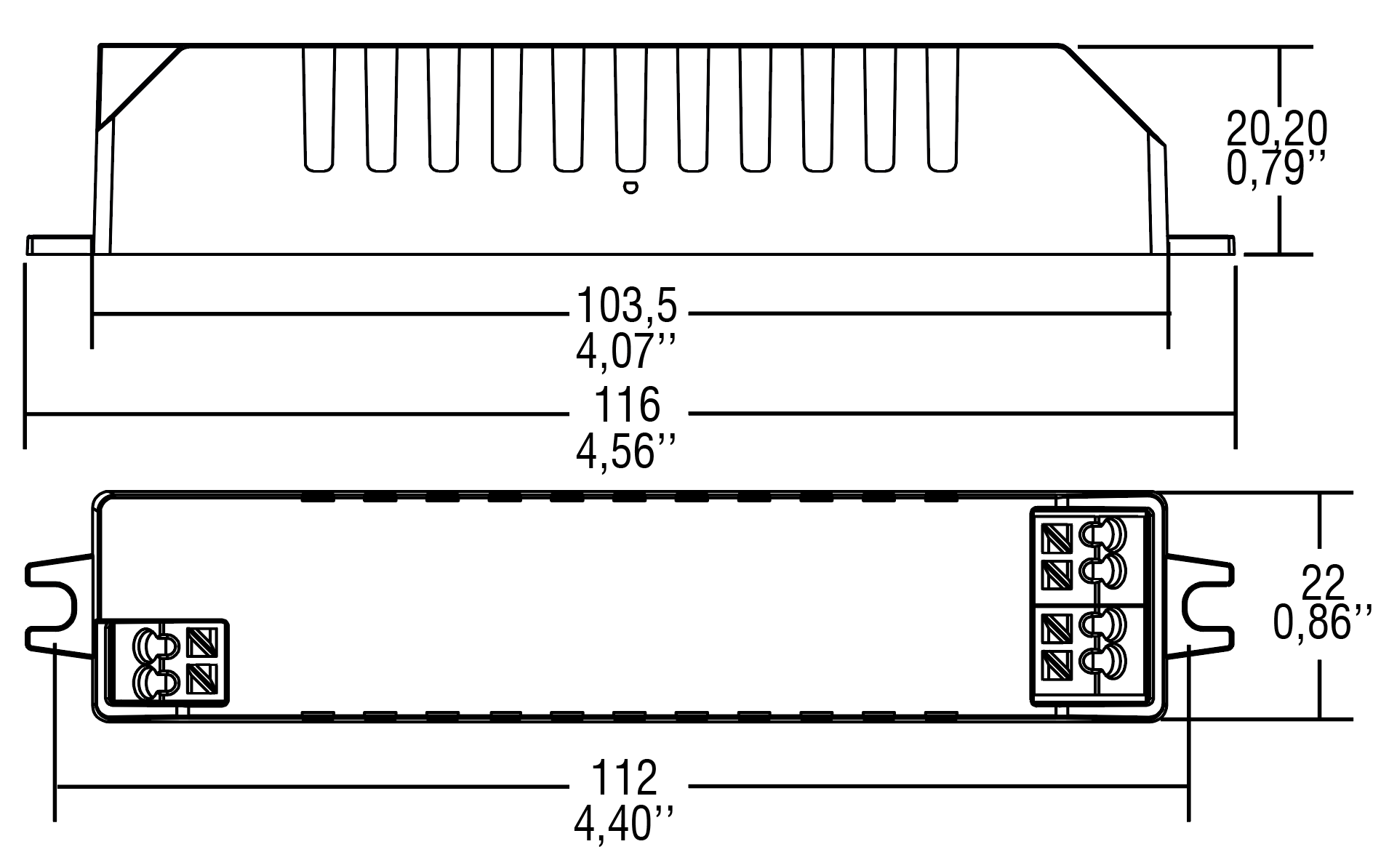

Size:
116 x 20 x 22 mm
last update:
5/29/2025
Constant Current
Current
100 mA
220-240 V = Output power
4.6 W
Current
150 mA
220-240 V = Output power
6.9 W
Current
200 mA
220-240 V = Output power
9.2 W
Current
260 mA
220-240 V = Output power
12 W
Current
300 mA
220-240 V = Output power
12 W
Current
350 mA
Current
400 mA
220-240 V = Output power
12 W
Current
450 mA
220-240 V = Output power
12 W
Current
500 mA
220-240 V = Output power
12 W
Current
550 mA
220-240 V = Output power
12 W
Current
600 mA
220-240 V = Output power
12 W
Current
650 mA
220-240 V = Output power
12 W
Current
700 mA
220-240 V = Output power
12 W
Product info
Country of production:
Italy
EAN:
8010703472037
HS code:
85044083
