SIRIO SQ 40W/200-1000 AD (145136) - LED Drivers

back to LED Drivers

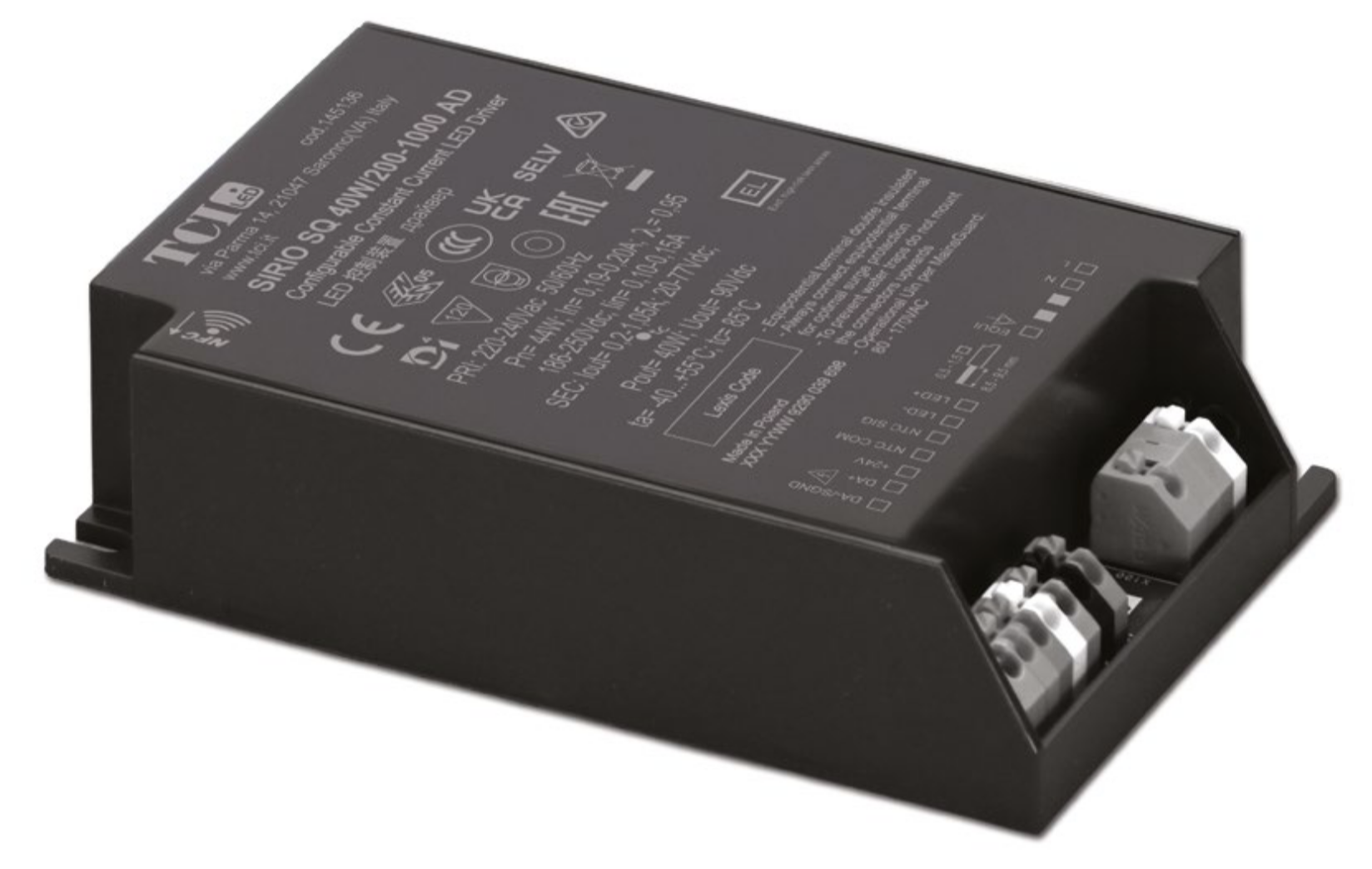

145136 - SIRIO SQ 40W/200-1000 AD

SIRIO SQ 40W/200-1000 AD - 145136 - TCI

Features

Rated Voltage
220...240 V
Constant Current
Current
NFC programming
Current
AOC via cables (ADJ. OUT. CURRENT)
Current
200 mA
220-240 V = Output power
15.4 W
Current
250 mA
220-240 V = Output power
19.2 W
Current
300 mA
220-240 V = Output power
23.1 W
Current
350 mA
220-240 V = Output power
26.9 W
Current
400 mA
220-240 V = Output power
30.8 W
Current
450 mA
220-240 V = Output power
34.6 W
Current
500 mA
220-240 V = Output power
38.5 W
Current
550 mA
220-240 V = Output power
40 W
Current
600 mA
220-240 V = Output power
40 W
Current
650 mA
220-240 V = Output power
40 W
Current
700 mA
220-240 V = Output power
40 W
Current
750 mA
220-240 V = Output power
40 W
Current
800 mA
220-240 V = Output power
40 W
Current
850 mA
220-240 V = Output power
40 W
Current
900 mA
220-240 V = Output power
40 W
Current
950 mA
220-240 V = Output power
40 W
Current
1000 mA
220-240 V = Output power
40 W
Current
1050 mA
220-240 V = Output power
40 W
Dimming:
D4i (Active DALI)
MIDNIGHT Function
CLO Function
DC EMERGENCY Function
Additional technical features:
RIPPLE FREE
ACTIVE PFC (pf>0.9)
SELV >60/<>
DIMMING: AMPLITUDE (AM) IEEE1789-2015 - Dim-to-Warm
4/5 kV DM/CM SURGE Input Protection
4/8 kV DM/CM SURGE Input Protection
6/6 kV DM/CM SURGE Input Protection
6/8 kV DM/CM SURGE Input Protection
6/10 kV DM/CM SURGE Input Protection
Approvals:
ENEC
CCC
RCM
CE
UKCA
Plastic case:
Square
for Built-in
Size:
123 x 31 x 79 mm
last update:
2/27/2025
Product info
Country of production:
Poland
EAN:
8010703893740
HS code:
85044083

Documentation download

Approvals download

Software
