ECO PRO FLAT 40 (145192) - LED Drivers

back to LED Drivers

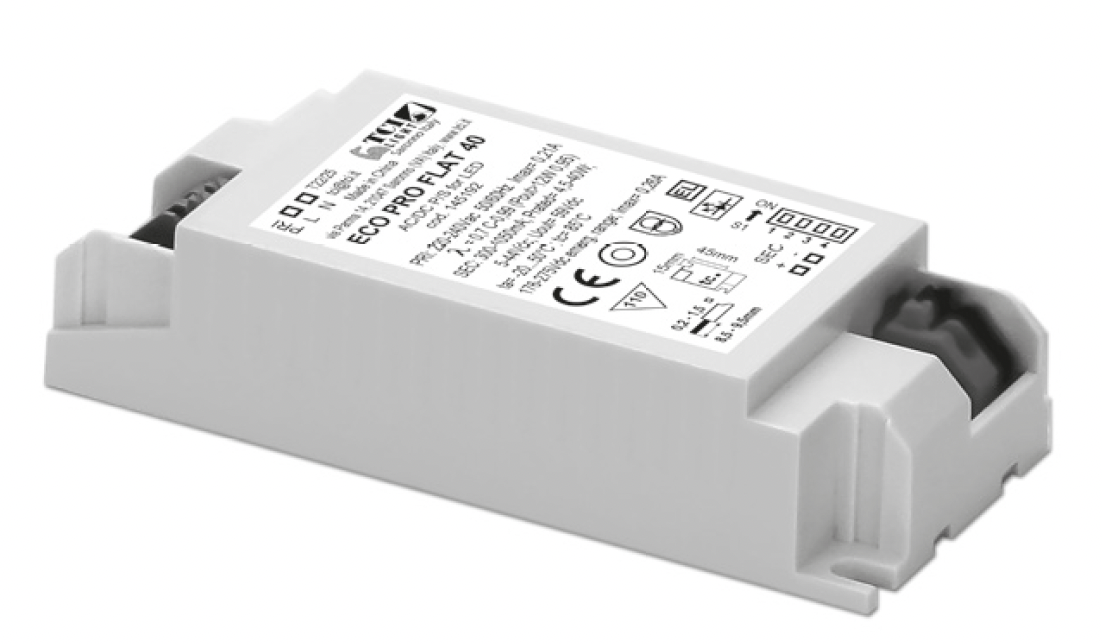

145192 - ECO PRO FLAT 40

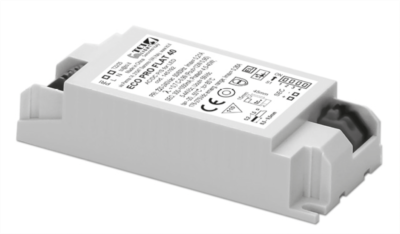

ECO PRO FLAT 40 - 145192 - TCIECO PRO FLAT 40 - 145192 - TCIECO PRO FLAT 40 - 145192 - TCIECO PRO FLAT 40 - 145192 - TCI

Features

Rated Voltage
220...240 V
Dimming:
NOT DIMMABLE
Additional technical features:
RIPPLE FREE
ACTIVE PFC (pf>0.9)
SELV <>
Approvals:
ENEC
CCC
RCM
CE
UKCA
Plastic case:
for Built-in
Size:
97 x 21 x 43 mm
last update:
7/13/2026
Constant Current
Current
300 mA
220-240 V = Output power
13 W
Current
350 mA
220-240 V = Output power
15 W
Current
400 mA
220-240 V = Output power
18 W
Current
450 mA
220-240 V = Output power
20 W
Current
500 mA
220-240 V = Output power
22 W
Current
550 mA
220-240 V = Output power
24 W
Current
600 mA
220-240 V = Output power
27 W
Current
650 mA
220-240 V = Output power
29 W
Current
700 mA
220-240 V = Output power
31 W
Current
750 mA
220-240 V = Output power
32 W
Current
800 mA
220-240 V = Output power
33 W
Current
850 mA
220-240 V = Output power
35 W
Current
900 mA
220-240 V = Output power
38 W
Current
950 mA
220-240 V = Output power
40 W
Current
1000 mA
220-240 V = Output power
40 W
Current
1050 mA
220-240 V = Output power
40 W
Output voltage (min/max)
300 mA
15...44
350 mA
15...44
400 mA
13...44
450 mA
11...44
500 mA
10...44
550 mA
9...43
600 mA
8...43
650 mA
8...43
700 mA
7...43
750 mA
6...42
800 mA
6...42
850 mA
6...42
900 mA
6...42
950 mA
6...42
1000 mA
5...40
1050 mA
5...38
Product info
Country of production:
China
EAN:
8010703479562
HS code:
85044083
