145155 - PROFESSIONALE ECO 17W

PROFESSIONALE ECO 17W - 145155 - TCIPROFESSIONALE ECO 17W - 145155 - TCIPROFESSIONALE ECO 17W - 145155 - TCIPROFESSIONALE ECO 17W - 145155 - TCI

Features

Rated Voltage
220...240 V
Dimming:
NOT DIMMABLE
Additional technical features:
RIPPLE FREE
ACTIVE PFC (pf>0.9)
SELV <>
Approvals:
ENEC
CCC
RCM
CE
Plastic case:
Square
for Built-in

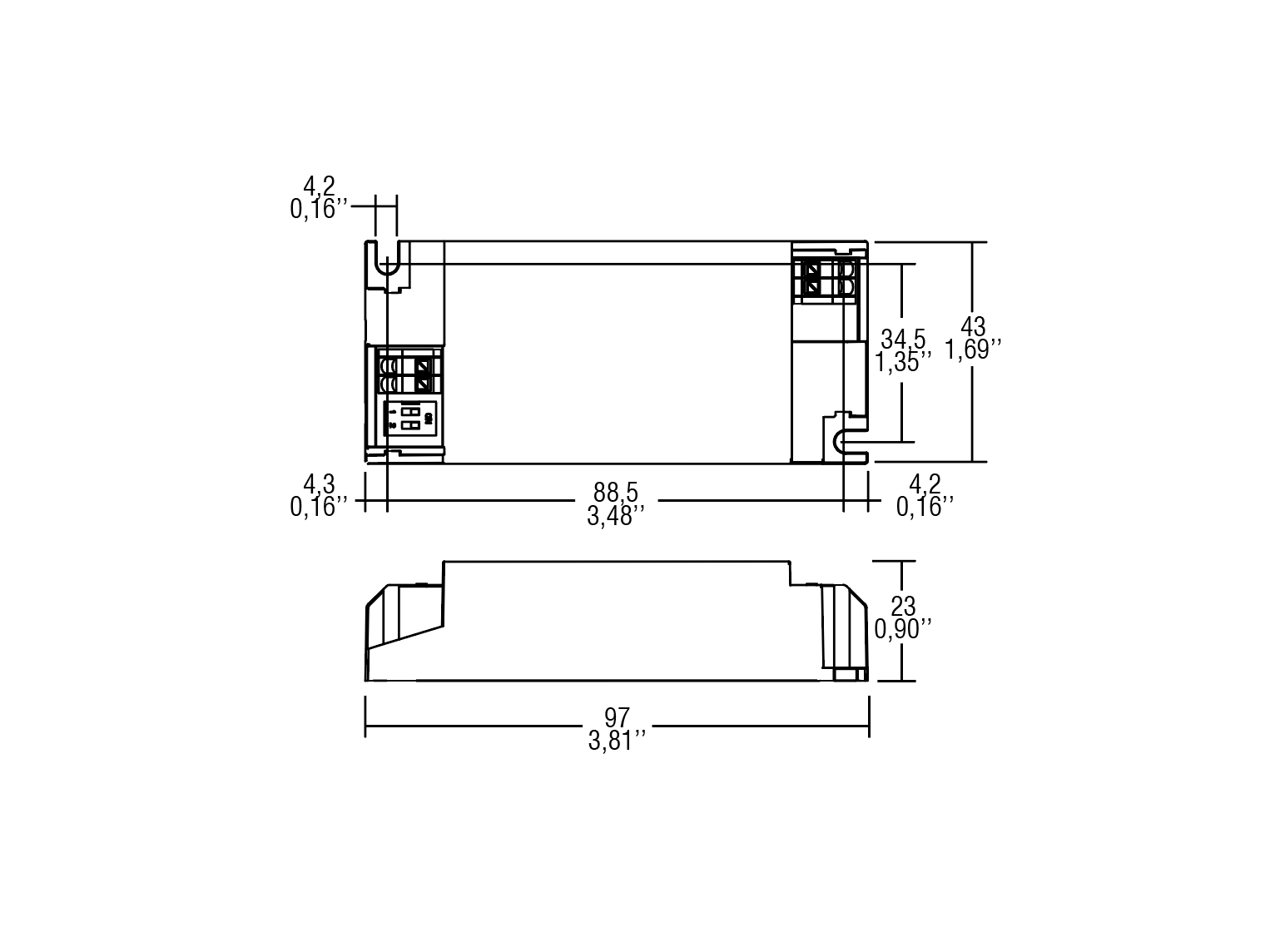

Size:
97 x 23 x 43 mm
last update:
7/13/2026
Constant Current
Current
250 mA
220-240 V = Output power
10.5 W
Current
300 mA
220-240 V = Output power
12.6 W
Current
350 mA
220-240 V = Output power
14.7 W
Current
400 mA
220-240 V = Output power
16.8 W
Output voltage (min/max)
250 mA
20...42
300 mA
20...42
350 mA
20...42
400 mA
20...42
Product info
Country of production:
China
EAN:
8010703898424
HS code:
85044083
