Features
Rated Voltage
Current
AOC via cables (ADJ. OUT. CURRENT)
Current
100 mA
220-240 V = Output power
5 W
Current
125 mA
220-240 V = Output power
6.25 W
Current
150 mA
220-240 V = Output power
7.5 W
Current
200 mA
220-240 V = Output power
10 W
Current
225 mA
220-240 V = Output power
11.25 W
Current
250 mA
220-240 V = Output power
12.5 W
Current
300 mA
220-240 V = Output power
15 W
Current
350 mA
220-240 V = Output power
17.5 W
Current
400 mA
220-240 V = Output power
20 W
Current
500 mA
220-240 V = Output power
25 W
Current
550 mA
220-240 V = Output power
27.5 W
Current
600 mA
220-240 V = Output power
30 W
Current
650 mA
220-240 V = Output power
32.5 W
Current
700 mA
220-240 V = Output power
35 W
Current
750 mA
220-240 V = Output power
37.5 W
Current
800 mA
220-240 V = Output power
40 W
Current
850 mA
220-240 V = Output power
42.5 W
Current
900 mA
220-240 V = Output power
45 W
Current
950 mA
220-240 V = Output power
47.5 W
Current
1000 mA
220-240 V = Output power
50 W
Current
1050 mA
220-240 V = Output power
50 W
Current
1200 mA
220-240 V = Output power
50 W
Dimming:
Additional technical features:
RIPPLE FREE
ACTIVE PFC (pf>0.9)
SELV >60/<>
DIMMING: AMPLITUDE (AM) IEEE1789-2015 - Dim-to-Warm
TW TUNABLE WHITE - 2 CH
Suitable for AUTOMATIC WIRING MACHINE
Plastic case:
Slim
for Built-in
IP 20 (Independent Use)
Minimum cut-out hole diameter:
Approvals:
Size:
360 x 21 x 30 mm
last update:
10/25/2023
Kubla

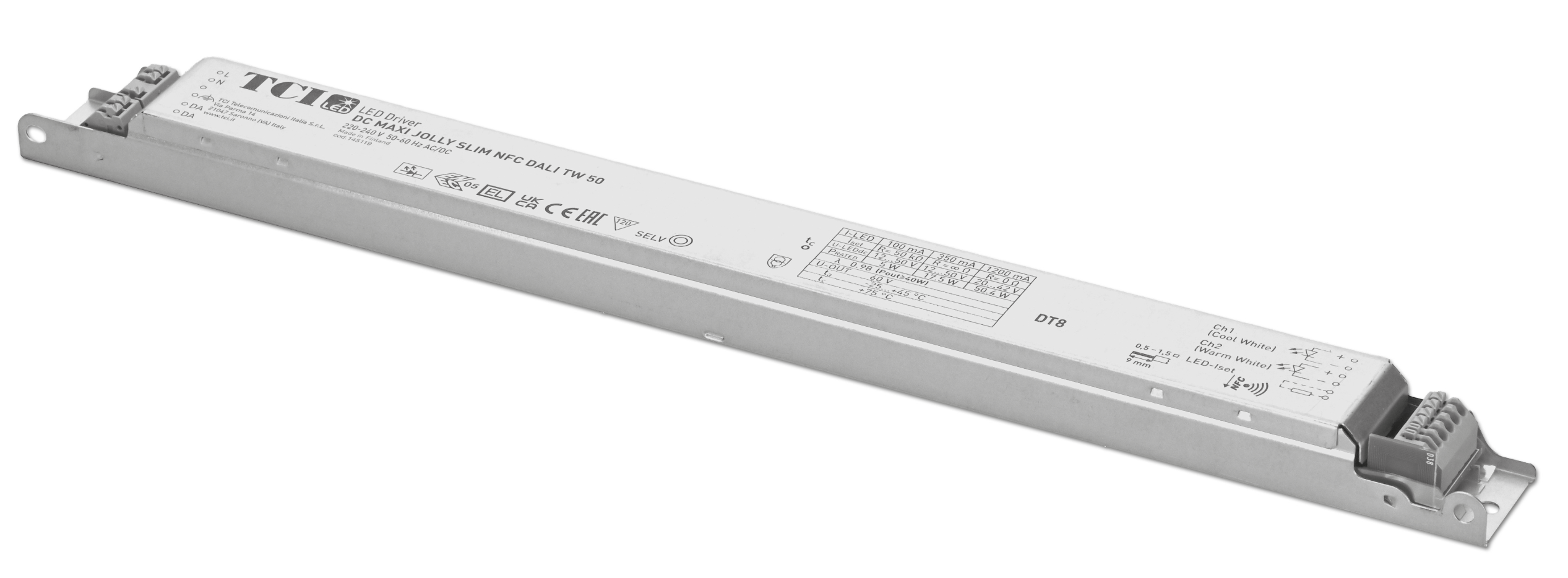

DC MAXI JOLLY SLIM NFC DALI TW 50 (710 kb)
