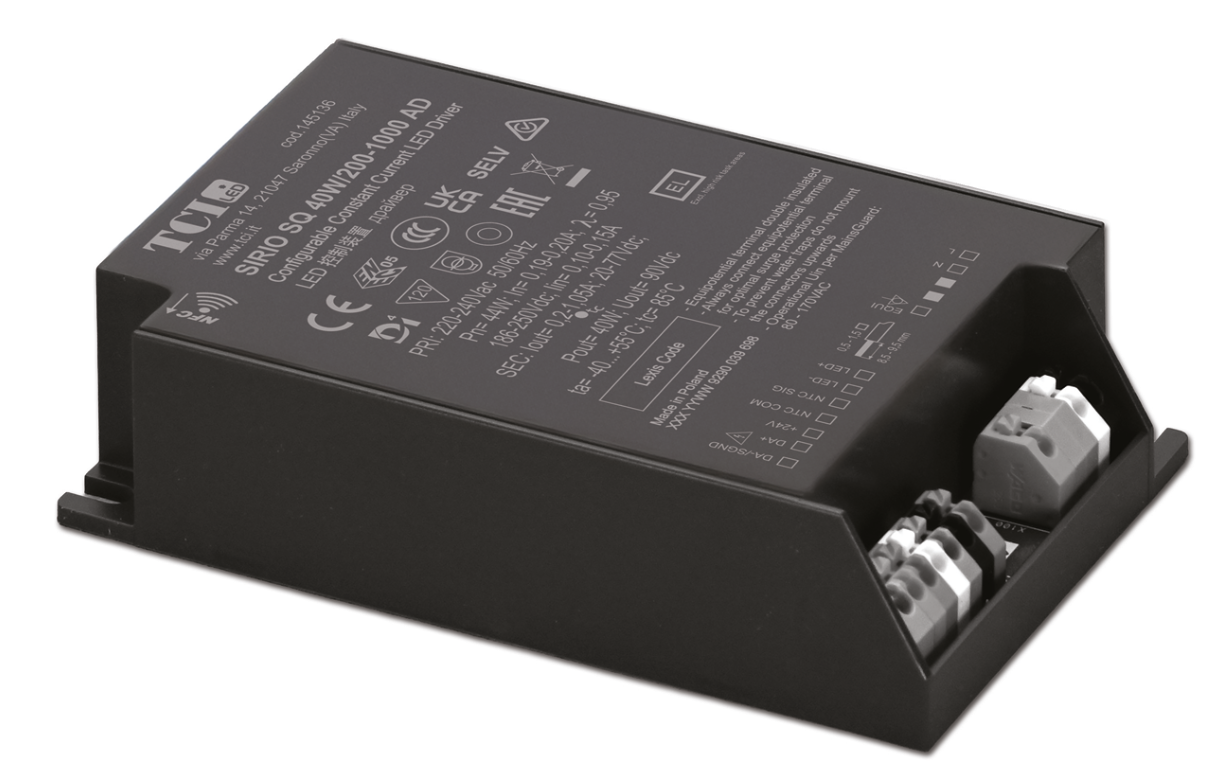

SIRIO SQ 40W/300-1000 AD (145046) - LED Drivers

back to LED Drivers

145046 - SIRIO SQ 40W/300-1000 AD

search engine powered by

Kubla

Features

Rated Voltage

220...240 V

Constant Current

Current

300 mA

220-240 V = Output power

16.2 W

Current

350 mA

220-240 V = Output power

18.9 W

Current

400 mA

220-240 V = Output power

21.6 W

Current

450 mA

220-240 V = Output power

24.3 W

Current

500 mA

220-240 V = Output power

27 W

Current

550 mA

220-240 V = Output power

29.7 W

Current

600 mA

220-240 V = Output power

32.4 W

Current

650 mA

220-240 V = Output power

35.1 W

Current

700 mA

220-240 V = Output power

37.8 W

Current

750 mA

220-240 V = Output power

40 W

Current

800 mA

220-240 V = Output power

40 W

Current

850 mA

220-240 V = Output power

40 W

Current

900 mA

220-240 V = Output power

40 W

Current

950 mA

220-240 V = Output power

40 W

Current

1000 mA

220-240 V = Output power

40 W

Current

1050 mA

220-240 V = Output power

40 W

Dimming:

D4i (Active DALI)

MIDNIGHT Function

CLO Function

DC EMERGENCY Function

FULL PROGRAMMABLE

Additional technical features:

RIPPLE FREE

ACTIVE PFC (pf>0.9)

SELV <>

DIMMING: AMPLITUDE (AM) IEEE1789-2015 - Dim-to-Warm

4/5 kV DM/CM SURGE Input Protection

4/8 kV DM/CM SURGE Input Protection

6/6 kV DM/CM SURGE Input Protection

6/8 kV DM/CM SURGE Input Protection

Approvals:

ENEC

CCC

RCM

UKCA

Plastic case:

Square

for Built-in

Size:

133 x 40 x 77 mm

last update:

3/15/2023
