145061 - SIRIO SQ 75W/500-1500 4PN

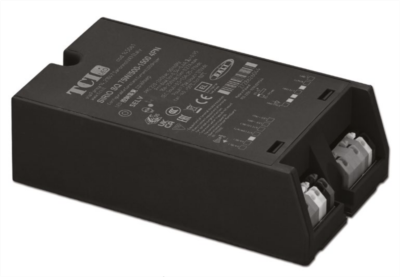

SIRIO SQ 75W/500-1500 4PN - 145061 - TCI

search engine powered by

Kubla

Features

Rated Voltage

220...240 V

Constant Current

Current

500 mA

220-240 V = Output power

35.5 W

Current

550 mA

220-240 V = Output power

39.05 W

Current

600 mA

220-240 V = Output power

42.6 W

Current

650 mA

220-240 V = Output power

46.15 W

Current

700 mA

220-240 V = Output power

49.7 W

Current

750 mA

220-240 V = Output power

53.25 W

Current

800 mA

220-240 V = Output power

56.8 W

Current

850 mA

220-240 V = Output power

60.35 W

Current

900 mA

220-240 V = Output power

63.9 W

Current

950 mA

220-240 V = Output power

67.45 W

Current

1000 mA

220-240 V = Output power

71 W

Current

1050 mA

220-240 V = Output power

74.5 W

Current

1100 mA

220-240 V = Output power

75 W

Current

1150 mA

220-240 V = Output power

75 W

Current

1200 mA

220-240 V = Output power

75 W

Current

1250 mA

220-240 V = Output power

75 W

Current

1300 mA

220-240 V = Output power

75 W

Current

1350 mA

220-240 V = Output power

75 W

Current

1400 mA

220-240 V = Output power

75 W

Dimming:

DALI-2 (also DALI-1)

MIDNIGHT Function

BILEVEL Function

CLO Function

DC EMERGENCY Function

FULL PROGRAMMABLE

Additional technical features:

RIPPLE FREE

ACTIVE PFC (pf>0.9)

SELV >60/<>

DIMMING: AMPLITUDE (AM) IEEE1789-2015 - Dim-to-Warm

4/5 kV DM/CM SURGE Input Protection

4/8 kV DM/CM SURGE Input Protection

6/6 kV DM/CM SURGE Input Protection

6/8 kV DM/CM SURGE Input Protection

6/10 kV DM/CM SURGE Input Protection

Approvals:

ENEC

CCC

RCM

UKCA

Plastic case:

Square

for Built-in

Size:

133 x 39 x 75 mm

last update:

3/15/2023
