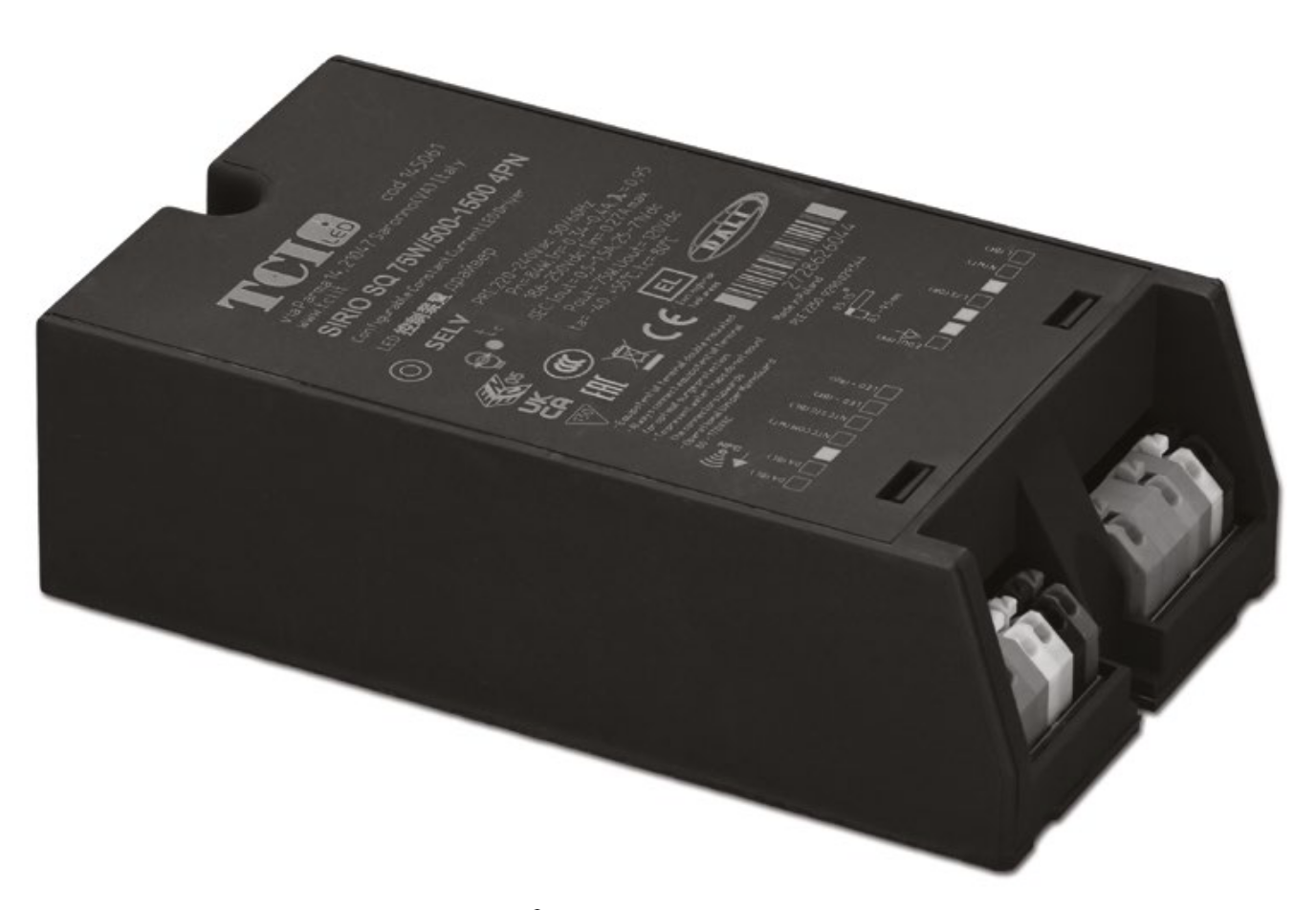

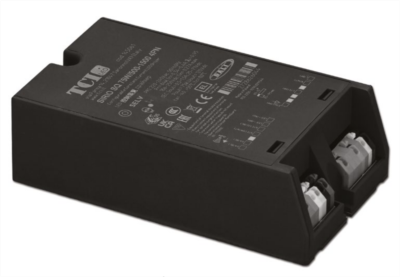

145056 - SIRIO SQ 75W/200-700 4PN

search engine powered by

Kubla

Features

Rated Voltage

220...240 V

Constant Current

Current

200 mA

220-240 V = Output power

30 W

Current

250 mA

220-240 V = Output power

37.5 W

Current

300 mA

220-240 V = Output power

45 W

Current

350 mA

220-240 V = Output power

52.5 W

Current

400 mA

220-240 V = Output power

60 W

Current

450 mA

220-240 V = Output power

67.5 W

Current

500 mA

220-240 V = Output power

75 W

Current

550 mA

220-240 V = Output power

75 W

Current

600 mA

220-240 V = Output power

75 W

Current

650 mA

220-240 V = Output power

75 W

Current

700 mA

220-240 V = Output power

75 W

Dimming:

DALI-2 (also DALI-1)

MIDNIGHT Function

BILEVEL Function

CLO Function

DC EMERGENCY Function

FULL PROGRAMMABLE

Additional technical features:

RIPPLE FREE

ACTIVE PFC (pf>0.9)

NOT SELV (>120V)

DIMMING: AMPLITUDE (AM) IEEE1789-2015 - Dim-to-Warm

4/5 kV DM/CM SURGE Input Protection

4/8 kV DM/CM SURGE Input Protection

6/6 kV DM/CM SURGE Input Protection

6/8 kV DM/CM SURGE Input Protection

6/10 kV DM/CM SURGE Input Protection

Approvals:

ENEC

CCC

RCM

UKCA

Plastic case:

Square

for Built-in

Size:

133 x 39 x 75 mm

last update:

3/15/2023
