151376 - ATON 38 DALI NFC BI

search engine powered by

Kubla

Features

Rated Voltage

220...240 V

Constant Current

Current

NFC programming

Current

150 mA

220-240 V = Output power

8.1 W

Current

200 mA

220-240 V = Output power

10.8 W

Current

250 mA

220-240 V = Output power

13.5 W

Current

300 mA

220-240 V = Output power

16.2 W

Current

350 mA

220-240 V = Output power

18.9 W

Current

400 mA

220-240 V = Output power

21.6 W

Current

450 mA

220-240 V = Output power

24.3 W

Current

500 mA

220-240 V = Output power

27 W

Current

550 mA

220-240 V = Output power

29.7 W

Current

600 mA

220-240 V = Output power

32.4 W

Current

650 mA

220-240 V = Output power

35.1 W

Current

700 mA

220-240 V = Output power

37.8 W

Current

750 mA

220-240 V = Output power

38 W

Current

800 mA

220-240 V = Output power

38 W

Current

850 mA

220-240 V = Output power

38 W

Current

900 mA

220-240 V = Output power

38 W

Current

950 mA

220-240 V = Output power

38 W

Current

1000 mA

220-240 V = Output power

38 W

Current

1050 mA

220-240 V = Output power

38 W

Dimming:

DALI-2 (also DALI-1)

PUSH (on the Mains)

Additional technical features:

RIPPLE FREE

ACTIVE PFC (pf>0.9)

SELV <>

DIMMING: AMPLITUDE (AM) IEEE1789-2015 - Dim-to-Warm

Suitable for AUTOMATIC WIRING MACHINE

Approvals:

ENEC

RCM

EAC

UKCA

Plastic case:

Slim

for Built-in

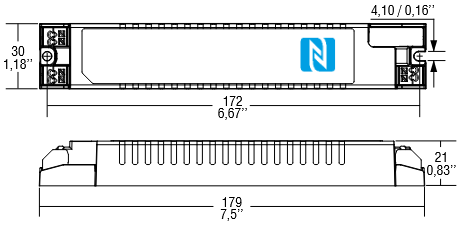

Size:

180 x 21 x 30 mm

last update:

11/30/2022
