Features
Rated Voltage
Current
AOC via cables (ADJ. OUT. CURRENT)
Current
100 mA
220-240 V = Output power
23 W
Current
125 mA
220-240 V = Output power
28.75 W
Current
150 mA
220-240 V = Output power
34.5 W
Current
200 mA
220-240 V = Output power
46 W
Current
225 mA
220-240 V = Output power
51.75 W
Current
250 mA
220-240 V = Output power
57.5 W
Current
300 mA
220-240 V = Output power
69 W
Current
350 mA
220-240 V = Output power
80.5 W
Current
400 mA
220-240 V = Output power
92 W
Current
430 mA
220-240 V = Output power
100 W
Current
500 mA
220-240 V = Output power
100 W
Current
550 mA
220-240 V = Output power
100 W
Current
600 mA
220-240 V = Output power
100 W
Current
650 mA
220-240 V = Output power
100 W
Current
700 mA
220-240 V = Output power
100 W
Current
750 mA
220-240 V = Output power
100 W
Current
800 mA
220-240 V = Output power
100 W
Dimming:
Additional technical features:
RIPPLE FREE
ACTIVE PFC (pf>0.9)
NOT SELV (>120V)
DIMMING: AMPLITUDE (AM) IEEE1789-2015 - Dim-to-Warm
TW TUNABLE WHITE - 2 CH
Suitable for AUTOMATIC WIRING MACHINE
Approvals:
Plastic case:
Slim
for Built-in
IP 20 (Independent Use)
Minimum cut-out hole diameter:
Size:
360 x 21 x 30 mm
last update:
4/3/2025
Country of production:
Italy
EAN:
8010703883932
HS code:
85044095
Kubla

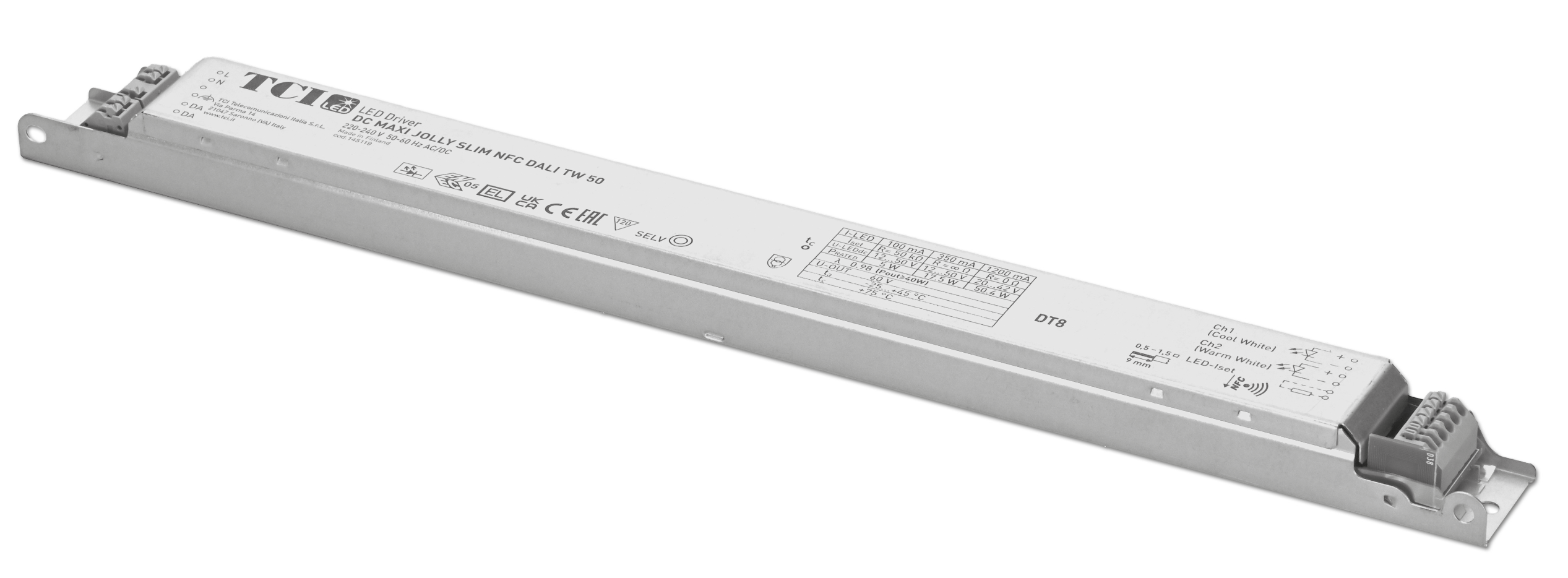

DC MAXI JOLLY SLIM NFC DALI TW 100 (283 kb)
Photo (775 kb)
CE (204 kb)
ENEC (2 Mb)
CB CERTIFICATE (248 kb)
UKCA (186 kb)
