PRO FLAT 22 D4i NFC BI (142208) - LED Drivers

back to LED Drivers

142208 - PRO FLAT 22 D4i NFC BI

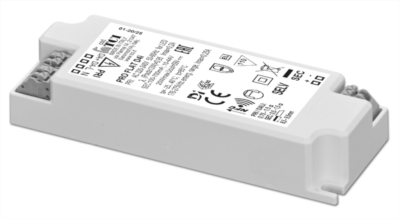

PRO FLAT 22 D4i NFC BI - 142208 - TCIPRO FLAT 22 D4i NFC BI - 142208 - TCI

Features

Rated Voltage
220...240 V
Constant Current
Current
100 mA
220-240 V = Output power
4.1 W
Current
120 mA
220-240 V = Output power
4.9 W
Current
140 mA
220-240 V = Output power
5.7 W
Current
160 mA
220-240 V = Output power
6.6 W
Current
180 mA
220-240 V = Output power
7.4 W
Current
200 mA
220-240 V = Output power
8.2 W
Current
220 mA
220-240 V = Output power
9 W
Current
240 mA
220-240 V = Output power
9.8 W
Current
270 mA
220-240 V = Output power
11 W
Current
300 mA
220-240 V = Output power
12.3 W
Current
350 mA
220-240 V = Output power
14.3 W
Current
400 mA
220-240 V = Output power
16.4 W
Current
450 mA
220-240 V = Output power
18.4 W
Current
500 mA
220-240 V = Output power
20.5 W
Current
550 mA
220-240 V = Output power
22 W
Current
600 mA
220-240 V = Output power
22 W
Current
650 mA
220-240 V = Output power
22 W
Current
700 mA
220-240 V = Output power
22 W
Dimming:
D4i (Active DALI)
CLO Function
DC EMERGENCY Function
Additional technical features:
RIPPLE FREE
ACTIVE PFC (pf>0.9)
SELV <>
DIMMING: AMPLITUDE (AM) IEEE1789-2015 - Dim-to-Warm
Plastic case:
Square
for Built-in
Size:
115 x 21 x 42 mm
last update:
7/17/2025
Product info
Country of production:
Italy
EAN:
8010703473294
HS code:
85044083
