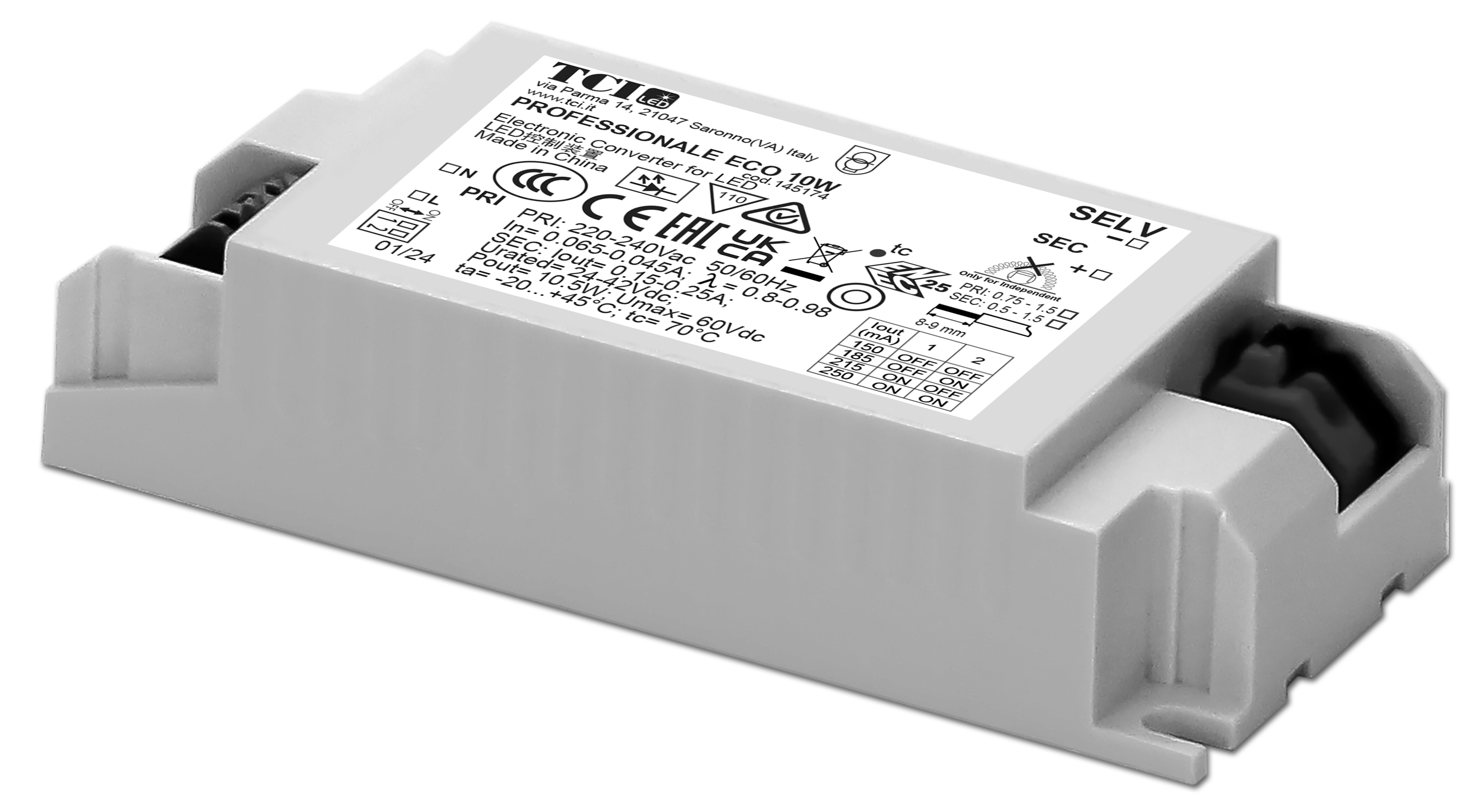

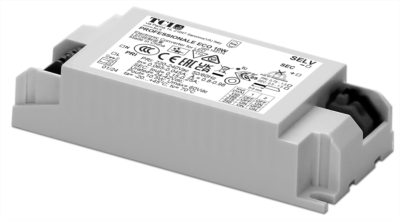

145174 - PROFESSIONALE ECO 10W

search engine powered by

Kubla

Features

Rated Voltage

220...240 V

Constant Current

Current

150 mA

220-240 V = Output power

6.3 W

Current

185 mA

220-240 V = Output power

7.7 W

Current

215 mA

220-240 V = Output power

9 W

Current

250 mA

220-240 V = Output power

10.5 W

Dimming:

NOT DIMMABLE

Additional technical features:

RIPPLE FREE

ACTIVE PFC (pf>0.9)

SELV <>

Approvals:

ENEC

Plastic case:

Square

for Built-in

Size:

97 x 23 x 43 mm

last update:

9/30/2025

Output voltage (min/max)

150 mA

24...42

185 mA

24...42

215 mA

24...42

250 mA

23...42

Product info

Country of production:

China

EAN:

8010703475700

HS code:

85044083

Documentation download

Catalog page
Photo (3 Mb)
3D design (1 Mb)
2D design (41 kb)
2D design (60 kb)
2D design (76 kb)

Approvals download

CE (329 kb)
ENEC (316 kb)
CB CERTIFICATE (275 kb)
