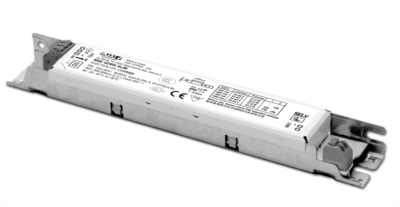

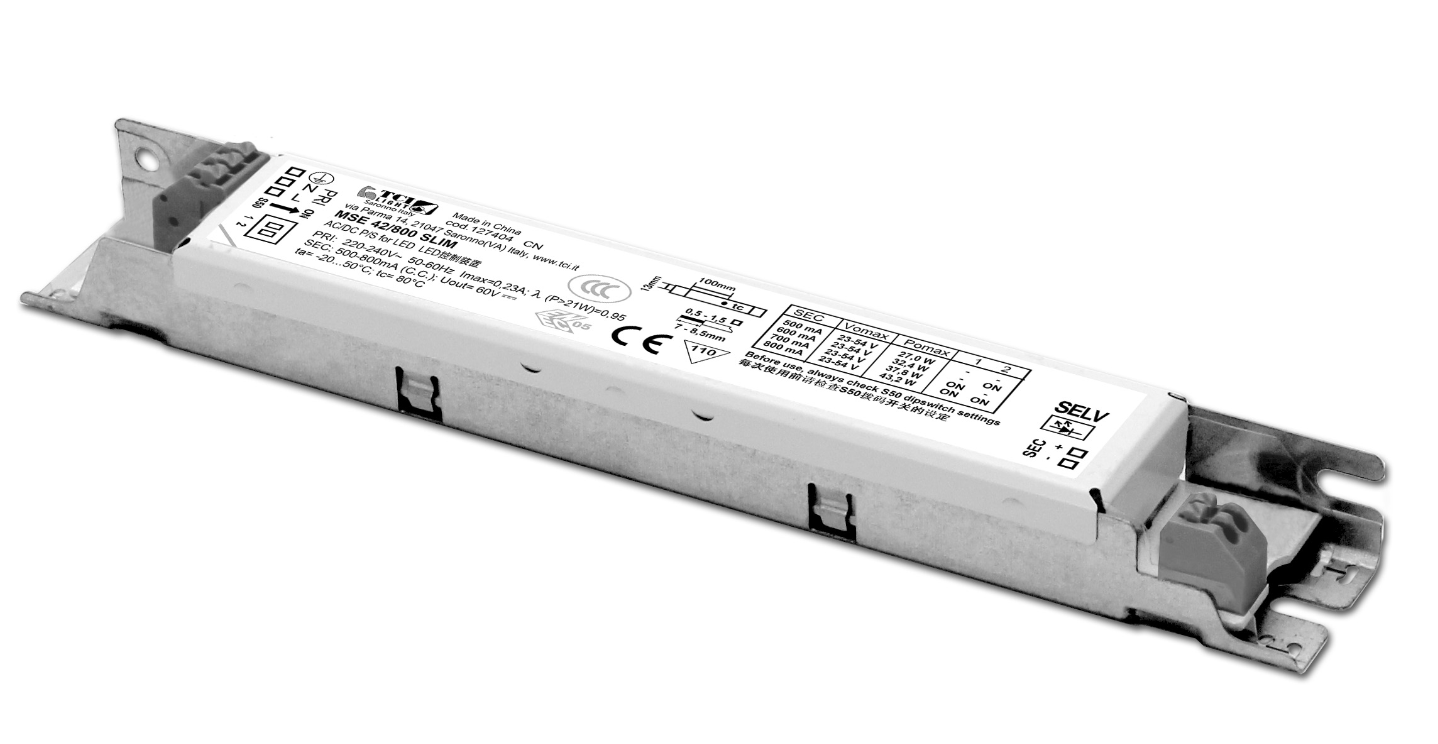

127404T - MSE 42/800 SLIM

search engine powered by

Kubla

Features

Rated Voltage

220...240 V

Constant Current

Current

500 mA

220-240 V = Output power

27 W

Current

600 mA

220-240 V = Output power

32.4 W

Current

700 mA

220-240 V = Output power

37.8 W

Current

800 mA

220-240 V = Output power

43.2 W

Dimming:

NOT DIMMABLE

Additional technical features:

RIPPLE FREE

ACTIVE PFC (pf>0.9)

SELV <>

Suitable for AUTOMATIC WIRING MACHINE

Approvals:

ENEC

RCM

Plastic case:

for Built-in

Size:

210 x 21 x 30 mm

last update:

2/27/2025

Output voltage (min/max)

500 mA

23...54

600 mA

23...54

700 mA

23...54

800 mA

23...54

Product info

Country of production:

China

EAN:

8010703871892

HS code:

85044083

Documentation download

MSE 42/800 SLIM
Photo (356 kb)
3D design (2 Mb)
2D design (73 kb)

Approvals download

CE (216 kb)
ENEC (2 Mb)
CB CERTIFICATE (133 kb)
RCM (512 kb)
